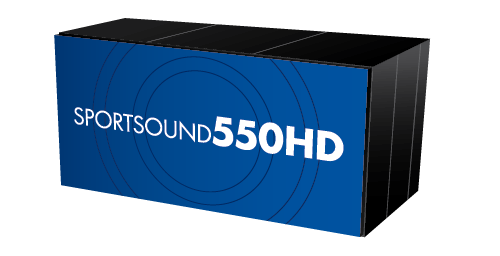

Sportsound 550HD Sound System
The Sportsound 550HD is a complete sound system designed to provide high-impact sound reinforcement for a variety of outdoor facilities, including football, lacrosse, soccer, softball and track. The system is installed in a permanent position and provides full range sound and even coverage at levels capable of overcoming crowd noise. The 550HD is designed for smaller sport venues; it is easy to set up and to operate.
Features
- Single-left, Single-right or Dual-sided coverage pattern options available
- Single cabinet accommodates future expandability
- Remote-mounted NEMA3R control enclosure allows for ease of service
- 24bit/48K digital audio via Dante® communication between announcer’s rack and control enclosure over multimode fiber optic cable, typically though a fiber conversion box (see DD2631088)
- Analog backup included with all standard systems (analog-only systems also available)
- Horn-loaded mid frequency drivers with constant directivity high frequency horns
- Mid and high frequency speakers adjust 0-30 degrees horizontally in 5 degree increments and 0-15 degrees vertically down in 2.5 degree increments
- On-board digital signal processing (DSP) with low signal latency
- On-board system diagnostics
- Rated to withstand hurricane force winds up to 78 psf
- Full-color-printable front mesh with UV protection
- Compatible with any Daktronics audio control system (see DD2367302)
Benefits
- Improved driver protection
- Low distortion
- Low latency
- Higher damping factor
- Broad coverage
- Improved 24bit/48K digital signal processing
- Signal transfer accomplished digitally via Ethernet and network connections
- Global power - it works anywhere in the world
Coverage Pattern
The 550HD offers three configurations: Dual (D), Single Left (SL) or Single Right (SR). The internal components of the single speaker configurations can be adjusted. The examples below show some of the popular aiming configurations. These adjustment options offer unprecedented installation flexibility without compromising on aesthetics.
550HD-SL single left coverage
550HD-SR single right coverage
550HD-D dual coverage
Specifications |
|
|---|---|
| Dimensions (H x W x D): | 4' x 8' x 3' 10" (1.22m x 2.44m x 1.17m) |
| Weight: | 550HD-D: 1090 lbs (494 kg); 550HD-SL/-SR: 1015 lbs (460 kg) |
| Paint Color: | Powder coat black with wrinkle finish |
| Construction: | Steel skeleton sheeted in aluminum paneling with two (2) rear access doors |
